Brand Name : | HTXG |
Model Number : | SHT200-2/4(A) |
Certification : | ISO9001 |
Price : | Negotiable |
Payment Terms : | T/T, Western Union, MoneyGram |
Supply Ability : | 50000pcs/momth |
Delivery Time : | ONE MONTH |

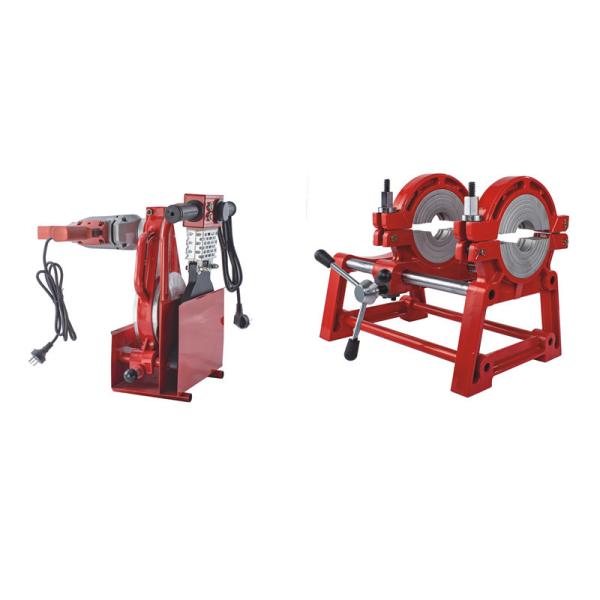

Competitive price hdpe pipe jointing digital heater SHT200-2/4(A)
The necessary electric will be transfer to the heater and milling cutter by means of this unit and to the main machine by the hydraulic pressure.The machine is operated by 220v±10%, 50Hz, if extended wire should be used, it should have enough lead section according to its length.The raw material of the machine frame is aluminum alloy, 45°slant design, is better to operate.If you require spare parts, We are committed to fulfilling the needs of production sites through tools and ideas from around the world.
Butt Fushion Welding Machine Technical data:
item | SHT160 -2/4(A) | SHT200 -2/4(A) | SHT250-2/4(A) |
Working Range | 63-160mm | 63-200mm | 90-250mm |
Caliber (mm) | 63, 75, 90, 110, 125, 140, 160 | 63, 75, 90, 110, 125, 140, 160, 180, 200 | 90, 110, 125, 140, 160, 180, 200, 225, 250 |
Heating board max temp. | 270 °C | 270 °C | 270 °C |
Temperature bias | “+/-5° | “+/-5° | *+/-5°C |
Heating plate power | 1.6 Kw | 1.8 Kw | 2.2 Kw |
Power of Heating plate: | 0.8 Kw | 0.8 Kw/1.2Kw | 1.45Kw/2.2Kw |
Total power | 2.4 Kw | 2.6 Kw/3.2Kw | 3.65Kw/4.7 Kw |
2(A) G.W./N.W.: | 35/32 kgs | 50/44 kgs | 83/70kg |
2(A) Packing size: | 55*47*52 cm | 67*47*53 cm | 76*55*58 cm |
4(A) G.W./N.W.: | 47/42 kgs | 52/46 kgs | 110/95kg |
4(A) Packing size: | 68*54*53 cm | 74*59*56 cm | 90*67*54 cm |
Other name:
Competitive price hdpe pipe jointing digital heater SHT200-2/4(A)
Features:
Hold the door handle when obtaining the milling cutter disc. The
milling cutter disc can only be rotated when it is installed on the
welding frame. Do not arbitrarily adjust the toggle switch of the
milling cutter.When making adjustments to this component, follow
the relevant requirements of this manual, such as Instructions for
Use
Preparation for welding HDPE Pipe manual Butt Fusion Welding Machine
1. Before operation, all equipment parts shall be placed on a
stable and dry place.
2. Confirm that the power supply used meets the requirements of the
equipment, the equipment is in good condition, and the electrical
circuit is not damaged; the detection indicator works normally, the
milling cutter blade is sharp, and the parts and operating tools
are complete.
3. Replace the required fixture according to the outer diameter of
the welded pipe.
Welding procedure for HDPE PIPE manual Butt Fusion Welding Machine
Application
Company profile
Zhuji Haitao Machinery Co., Ltd. is a manufacturer specializing in
the production of various specifications of PPR hot melt machines
(plastic pipe fusion welders), scissors, butt welders, and pressure
test pumps. Since the establishment of the factory, our factory
have always paid great attention to the research and development of
new products and the training of professional and technical staff,
and we are constantly exploring and innovating, and introducing
advanced foreign technology.
Haitaoxing’ products have passed CE certification and won unanimous
praise from the industry. Our factory adheres to the principle of
honesty, friendliness, mutual benefit, and the business tenet of
surviving on quality, development by reputation, and occupying the
market with price. Facing new and old customers, we have
established a complete after-sales service network system, and our
products are exported to large, medium and small cities in China
and all over the world.
The company is located in Huangtong Village, Ciwu Town, Zhuji City,
32 kilometers away from Hangzhou Xiaoshan International Airport and
2 kilometers away from the exit of HangJinQu Highway (Diankou,
Ciwu). The transportation is convenient and the environment is
beautiful. We sincerely welcome people of insight from all walks of
life to visit, cooperate and develop together.
Our service:
1) We offer 1 year warranty and free spare parts. (Except for
wearing parts)
2) We offer voltage and frequency of motor customization service,
such as 110v 60hz.
3) We can put your LOGO on machine plate or packing (need your
authorization on brand)
4) Machine can be shipped to overseas or domestic place by sea or
air in LCL or FCL.
![]() |
