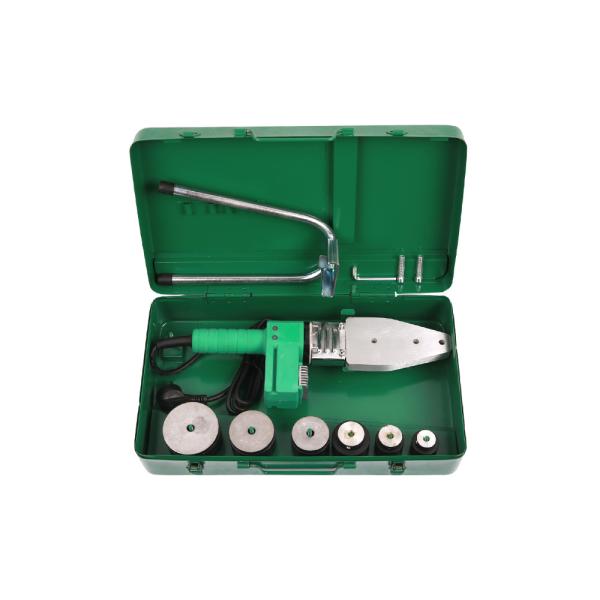

Water pipe connect machine 20-63mm 800w 220-230v factory price
Description
Portable easy operation pipe welders 20-63mm Hot melt plastic pipe
ppr welding machine butt welders made in china
Instruction for use
1. This receives inserts the type to melt the welding machine is
Φ20-160,
2. The specification has 20-160 .Take the pipe Fixes in the left
side jig, Remains according to the actual situation takes the
suitable length, In fitting fixed right margin adjustable shelf.
3. According the pipe’s size, Chooses the same model the mold, Left
side of the hot plate lays aside the concave shape mold, Right
margin lays aside the raised mold, Uses again M8×40 the screw fixes
in the circular telegram hot plate,
| pplicable Industries | Hotels, Manufacturing Plant, Food & Beverage Factory, Home Use,
Food Shop, Food & Beverage Shops |
| Place of Origin | Zhejiang,China |
| After-sales Service Provided | Online support, Video technical support |
| Warranty | 1 Year |
| Voltage | 220±10% |
| Power | 800W |
| Frequency | 50-60HZ |
| Welding Area | diameter20-63mm |
| Usage | pvc ppr pipe welding |
| Product name | Ppr pvc pipe fittings heating tools hot melt welding machine |
| Application | PVC PPR PB pipe welding |
| Material | Aluminum Alloy+nylon/abs |
| Welding diameter | 20-63mm |
| Working temperature | 0-300℃ |
| Certificate | CE ISO |
| Color | Green Black Yellow |
| Welding material | PE PPR PP PVDF |
| MOQ | 10 |
| OEM | OEM Acceptable |
What is socket welding machine?
Socket welding is used to connect pipes using a range of different
fittings, allowing for changes in the direction and diameter of
pipe networks as well as creating branches from existing pipelines.
The pipes are inserted into the socket weld fitting, which includes
a recess to accept the pipe, making placement easy.
What is the use of fusion machine?
Fusion machines are used for the joining of plastic pipe and
fittings. These tools can be used to join polypropylene,
polyethylene, PVDF and ECTFE pipe. Fusion machines heat up the ends
of pipes and fittings, then forces them together to form a bond.
Fusion machines support pipe sizes from 1/2" to 20".
Preparation for welding
The pipe material of the butt pipe section should be the same, and
the supporting materials of the same factory should be used as much
as possible; the outer diameter and wall thickness of the butt pipe
section should be the same; the inner and outer surfaces of the
welded pipe material and pipe fittings, especially the vicinity of
the port, should be smooth and smooth without any abnormality; the
size of the pipe material The deviation, etc. should meet the
requirements; the butt pipe section should have good processing and
welding performance matching the welding machine; check the
matching of the welding system and power supply, clean the heating
plate, connect the power of each part of the welding machine, and
should have grounding protection ; Set the heating plate
temperature to the welding temperature according to the welding
process parameters given by the welding machine; if it is an
automatic welding machine, parameters such as heat absorption time
and cooling time should also be set.
FAQ
Q1: Why choose us?
We are a professional manufacturer of pipe hot melt welding machine
and pipe scissors.
Q2: Do you provide samples?
Yes, we could offer the sample for free of charge but freight is
not included.
Q3: How long is your delivery time?
Generally it’s 3-7days if the goods are in stock, or it’s 25-30days
if the goods are not in stock, and it vary a little according to
quantity.
Q4: What is your terms of payment?
A: Payment under USD1,000, 100% T/T in advance.
B: Payment more than USD1,000, 30% T/T in advance, balance before
shipment.
Q5: What is your packing?
A: usually by carton, and can be packed as your require.
