    1200mm Semi Auto Hydraulic Butt Fusion Machine 29.5KW

    Ask Lasest Price
    Brand Name : HTXG
    Model Number : SHT1200
    Certification : ISO9001
    Price : USD17000/PC-18000/PC
    Payment Terms : T/T, , D/P
    Supply Ability : 1000PCS/MONTH
    Delivery Time : ONE MONTH
    • Product Details
    • Company Profile

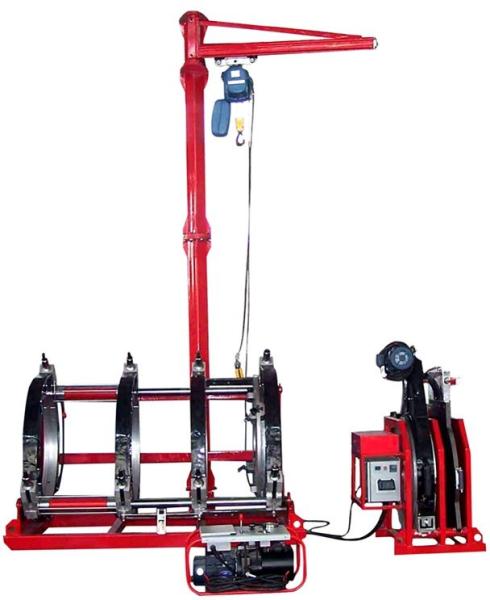

    1200mm Semi Auto Hydraulic Butt Fusion Machine 29.5KW

    Semi-auto HDPE pipe Hydraulic butt fusion welding machine for large size PE pipe made in China


    Brief introduction of SHT1200 BUTT FUSION WELDING MACHINE


    1. The raw material of the machine frame is aluminum , it is light but strong, is one of the best material for machine.

    2. The main electrical apparatus elements are best of china, many are imported from abroads.

    3. Removable PTFE coated heater with separate temperature control system, the temperature can be controlled to a minimum range.

    4. The electric facer adopts reversible double cutting edge blades, which can make the cutting effect more perfect.

    5. Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.

    6. Easy to use

    7. Welding position can transform that it is convenient for welding all kinds of pipe fittings.

    Product nameSemi-auto butt fushion welding machine
    Welding range(mm)800mm-1200,,
    Heating plate temperature270°C
    Heating plate surface temperature (170-250°C)<±10°C
    Pressure adjustment range0-16MPa
    Cross-sectional area of the cylinder3297mm2
    Working Voltage380V,50Hz/60Hz
    Heating plate power21.5.0kw
    Cutter power4.0kw
    Hydraulic station power3.0kw
    Lifting power1.0kw
    Total Power29.5kw
    Electrical parts elementsSchneider,Siemens,Bosch,Chint Group
    Machine frame materialaluminum ZL104
    Gross weight3000kgs

    Our advantage:


    1) CE, ISO9001 certificate

    2) Provide on line video technique teaching of fusion welding

    3) 1 year warranty

    4) Provide customized welding machine


    How to use it


    Our service:


    1) We offer 1 year warranty and free spare parts. (Except for wearing parts)

    2) We offer voltage and frequency of motor customization service, such as 110v 60hz.

    3) We can put your LOGO on machine plate or packing (need your authorization on brand)

    4) Machine can be shipped to overseas or domestic place by sea or air in LCL or FCL.
